Safe & Efficient

ILP’s Cavern Stairwell luminaire provides a safe, robust and attractive design ideal for wall or ceiling mounting. As stairwells are unoccupied 90% throughout the day, fully control light levels for both occupied and unoccupied areas with high/low user selectable bi-level dimming options for maximum energy savings. Cavern’s specification design, performance, housing lengths, finishes, sensor and emergency options make it the proper choice for stairwell illumination.

LUMENS

2,000 – 6,000

EFFICACY

Up to 157 lm/W

CCT

3000K – 5000K

FEATURES

• 2ft & 4ft Lengths
• 7.5” Width to Cover Existing Footprints

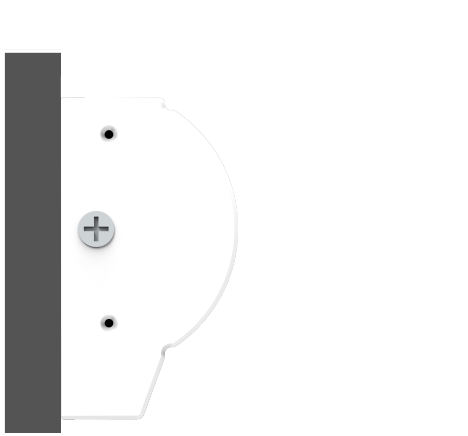

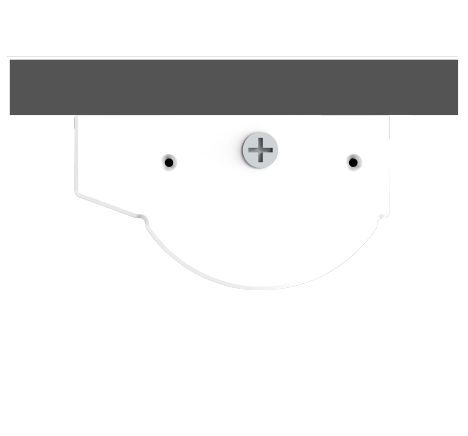

• Wall or Ceiling Mount
• Two Housing Specification Options
• Tamper Resistant Screw Option
• White Standard Finish with Optional Custom Colors
• Ultrasonic Sensor Provides for Maximum Sensing Range
• Impact Resistant Extruded Frosted Acrylic Lens
• High Efficacy up to 157 lm/W
• 3000K – 5000K CCTs
• >80 Color Rendering Index (CRI)
• Calculated L70 >100,000hrs
• Optional Integral Emergency Battery Backups
• ADA Compliant Luminaire

SUITABLE APPLICATIONS

• Education
• Healthcare
• Commercial Office
• Multi-family
• Hotel & Resort
• Storage Facility
• Retail

TWO HOUSING SPECIFICATION OPTIONS

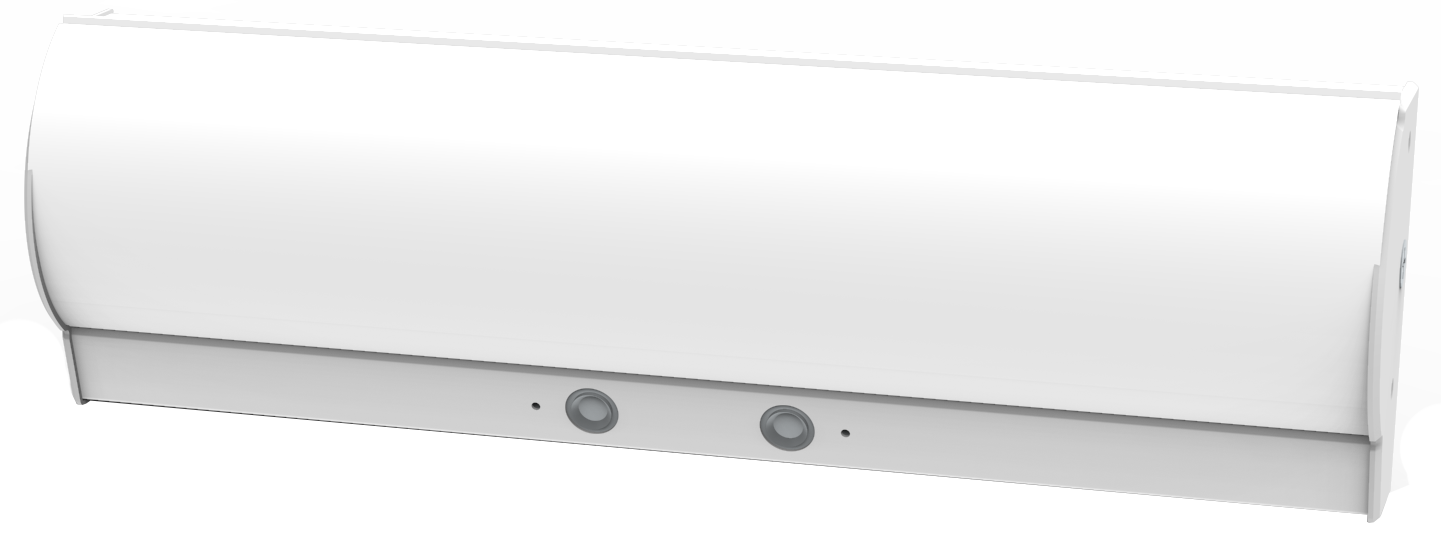

CV2-1a

Cavern (CV)

• .060″ Aluminum Body
• Cast Aluminum End Plates
• Post Paint Finish
• Tamer Resistant Design
• Ideal for front of house stairwells

CV2-1a

Cavern Lite (CVL)

• .040″ Aluminum Body
• Baked on Pre-Paint Enamel
• Economical solution without loss of performance
• Ideal for back of house stairwells

CONTROLS OPTIONS

Basic

USBD

User Selectable Bi-Level Dimming Ultrasonic Sensor with external control to allow end user to manually select unoccupied fixture output.



USBD/HL

User Selectable Bi-Level Dimming Ultrasonic Sensor with external control to allow end user to manually select occupied & unoccupied fixture output.



BDxx

Factory Set Bi-Level Dimming Ultrasonic Sensor with driver set to unoccupied output indicated by “xx” portion of the part number.
Ex: BD20 = 20% lumen output when area is unoccupied.

CV-sensor-zoom

Advanced

LUTRON VIVE

Select from RF Communication (VRF) or Daylight & Occupancy (VDO) with a scalable connected controls system from our partner Lutron. Vive provides intuitive programming allowing for maximum flexibility with wireless grouping communication.

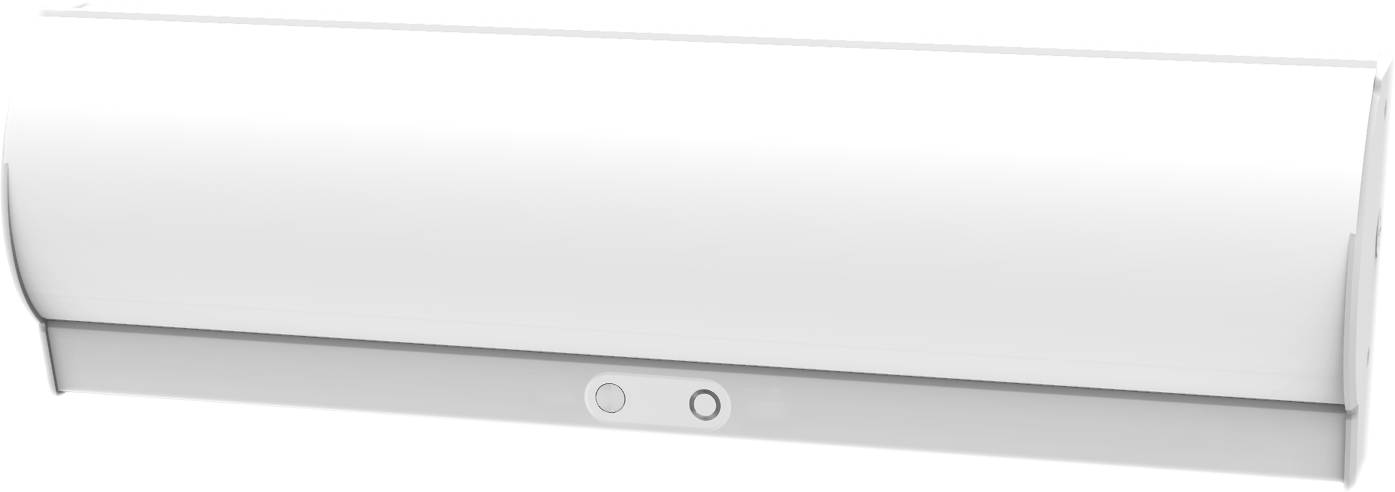

CVViveSensor

ADDITIONAL OPTIONS

EMERGENCY

• 5-12W UL 924 Battery Backup
• Generator Transfer Device

DRIVERS

• Sensor & DALI Ready
• Bi-Level Dimming
• 347V & 480V
