ENLIGHTED'S ADVANCED WIRELESS LIGHTING CONTROLS

The Enlighted IoT platform includes the most advanced wireless lighting control capabilities in the world. The system consists of a wireless network of patented sensors installed into or adjacent to the light fixtures and connected to an advanced analytics platform.

The sensors control lighting based on customized profiles, then capture and respond to data indicating changes in occupancy and ambient light levels. They maintain programmed behavior even if outages affect network health.

Enlighted sensors provide out-of-the-box compliance with energy use regulations. The sensors’ capacity for vacancy detection, daylight harvesting, demand response, and energy savings reporting, makes it easy to meet and exceed guidelines.

Enlighted Sensors

Enlighted transforms light fixtures into wireless IoT-enabled building intelligence solutions. Measuring ambient light, motion (PIR), energy consumption, and temperature, along with Bluetooth® capabilities and wireless connectivity.

icon-row-with-names

THE POSSIBILITIES ARE ENDLESS

Enlighted’s proven lighting control systems are reducing energy costs by 85% or more in over 320 million square feet of building space. And because their solutions are future-proof, you can add unlimited high-value IoT applications as they become available in the future.

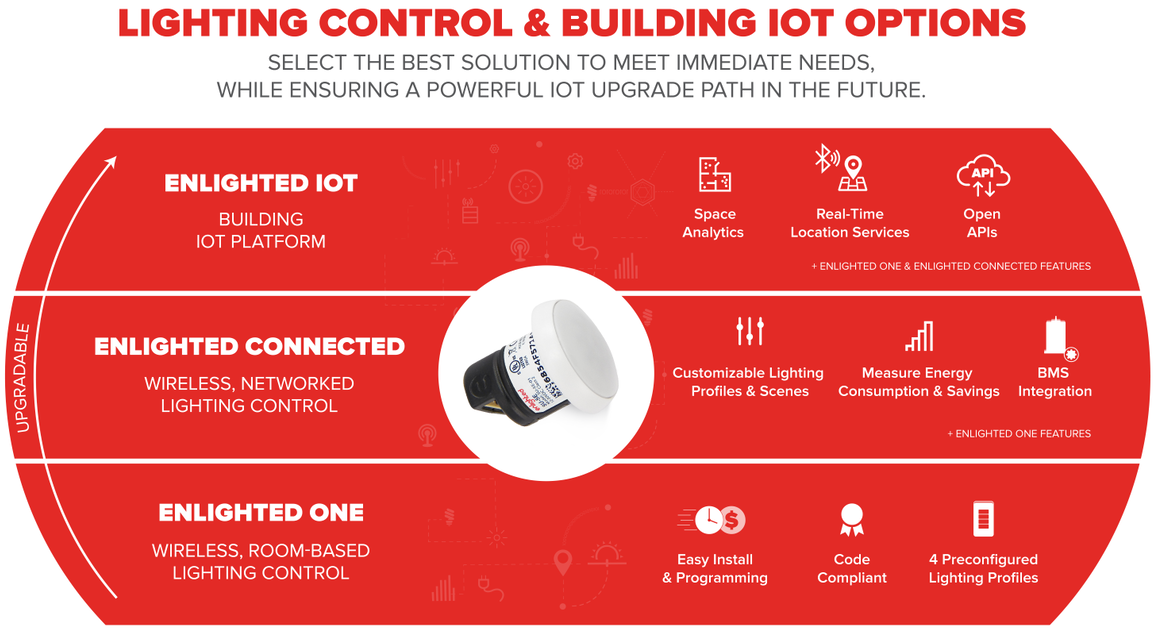

3 – Tier Lighting Control and Building IoT

AS OCCUPANT NEEDS EVOLVE, SO WILL YOUR BUILDINGS

Enlighted now offers its products in three upgradeable tiers of functionality. Select the optimal solution that meets your immediate needs, while simultaneously establishing a powerful upgrade path for when your requirements change or grow.

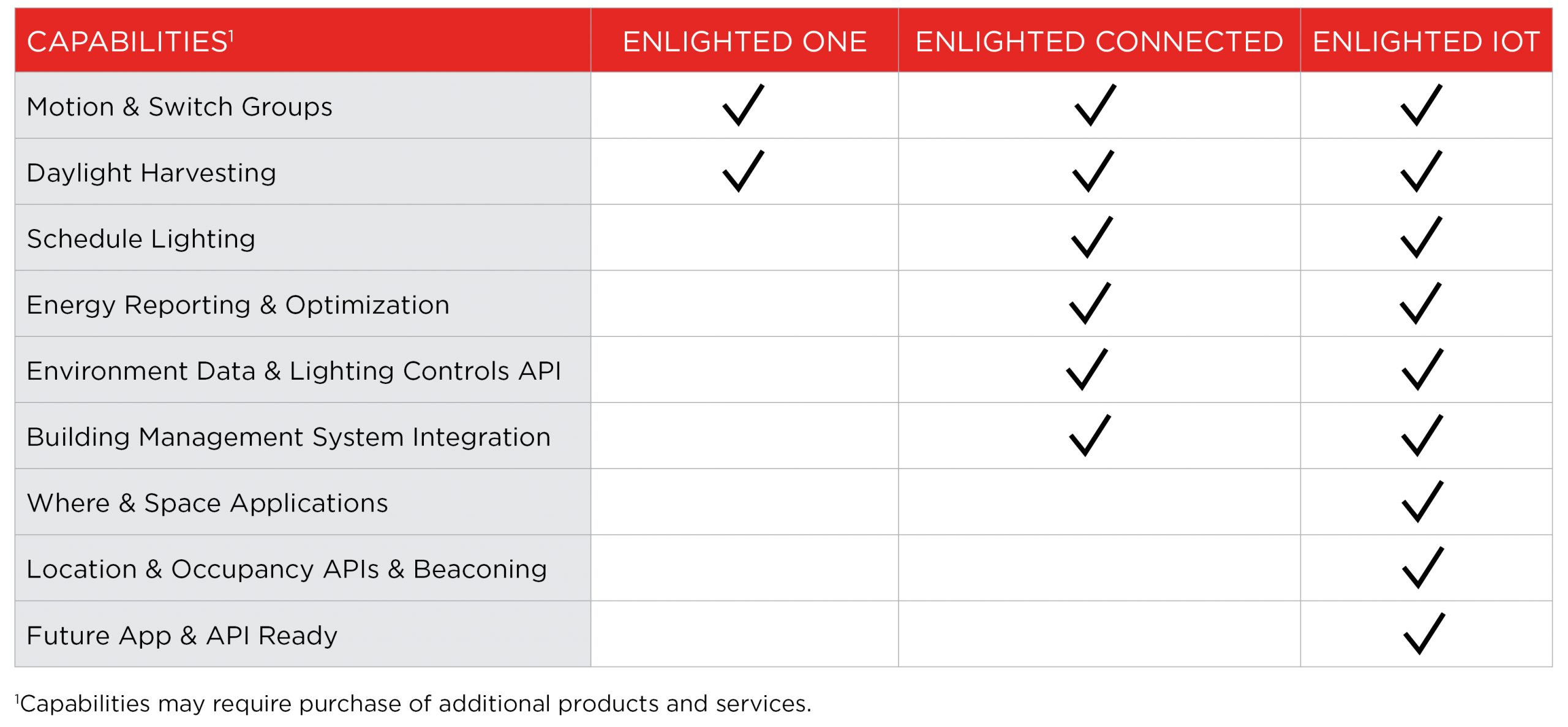

EL Chart

Smart lighting, quickly and efficiently. Enlighted One’s room-based lighting controls are fast and easy to install, program, and commission, saving time and money, and providing instant code compliance. Sensors arrive integrated into new lighting fixtures, or are simple to install with existing ones.



SIMPLE INSTALLATION,
INSTANT SAVINGS

Enlighted One is an out-of-the-box solution that delivers powerful lighting control. The wireless system comes programmed with four pre-configured lighting profiles. Projects can turn around faster, and more profitably, without a need for IT support.

IDEAL LIGHTING,
INSTANTLY

Enlighted One’s sensors automatically adjust light levels to take advantage of ambient daylight. Light levels are easily adjusted from a wall switch, and automatically switch off when not in use.

OUT OF THE BOX
CODE COMPLIANT

Powered by our award-winning wireless technology, Enlighted One’s lighting controls are code-compliant for Title 24 and ASHRAE 90.1.

Enlighted Connected offers all of the features of Enlighted One -- plus time-of-day scheduling, and building-wide control over lighting profiles. It also integrates with building management systems to provide occupancy data for HVAC adjustments. Automated demand response settings adjust energy use at times of peak demand, and the system provides detailed energy savings data by time of day, and location.



CONTROL FROM
YOUR DESKTOP

The Enlighted Energy Manager lets you easily program a range of lighting profiles from a single web-based user interface, to provide ideal illumination for any area or set of areas. Task tuning allows for adjustment of light levels, and the system can be programmed to follow a schedule, or respond in real-time.

GREATER EFFICIENCY



Groups of lights operate autonomously to respond to ambient light, and the system connects to the BMS, providing data for more efficient HVAC control. Enlighted Connected also provides detailed reporting on energy savings.

PREPARED FOR
THE FUTURE

Enlighted wireless networks are upgradeable to seamlessly adapt as new advanced features roll out. With sensor hardware already installed, the system is ready for upgrades when you are.

Enlighted IOT offers all of the features of Enlighted Connected -- plus Where & Space Applications, Location & Occupancy APIs & Beaconing, and Future App & API Ready solutions. The addition of the Safe Application provides digital contact tracing across a building or portfolio of buildings.

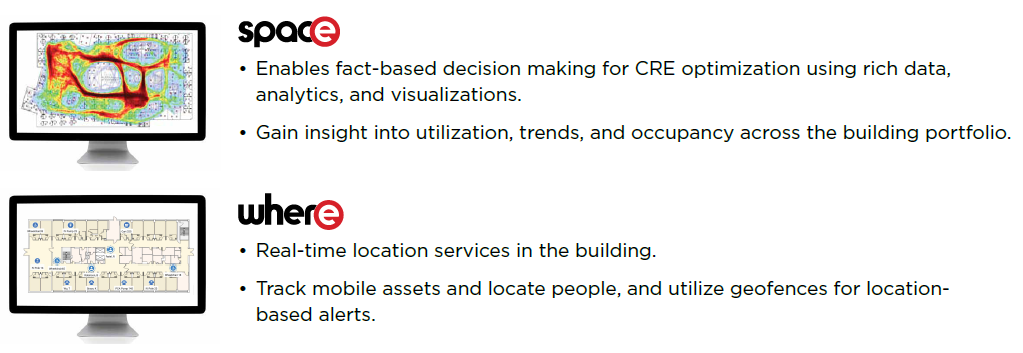

  • Enables fact-based decision making for CRE optimization using rich data, analytics, and visualization.
  • Gain insight into utilization, trends, and occupancy across the building portfolio.

  • Real-time location services in the building.
  • Track mobile assets and locate people, and utilize geofences for location-based alerts.

  • Workplace digital contact tracing and data-driven risk reduction application for COVID-19.
  • Create and monitor policy compliance by visualizing contact events across a building, or portfolio of buildings.
  • Contact tracing for affected employees while prioritizing data privacy with alphanumeric, anonymous ID badges.

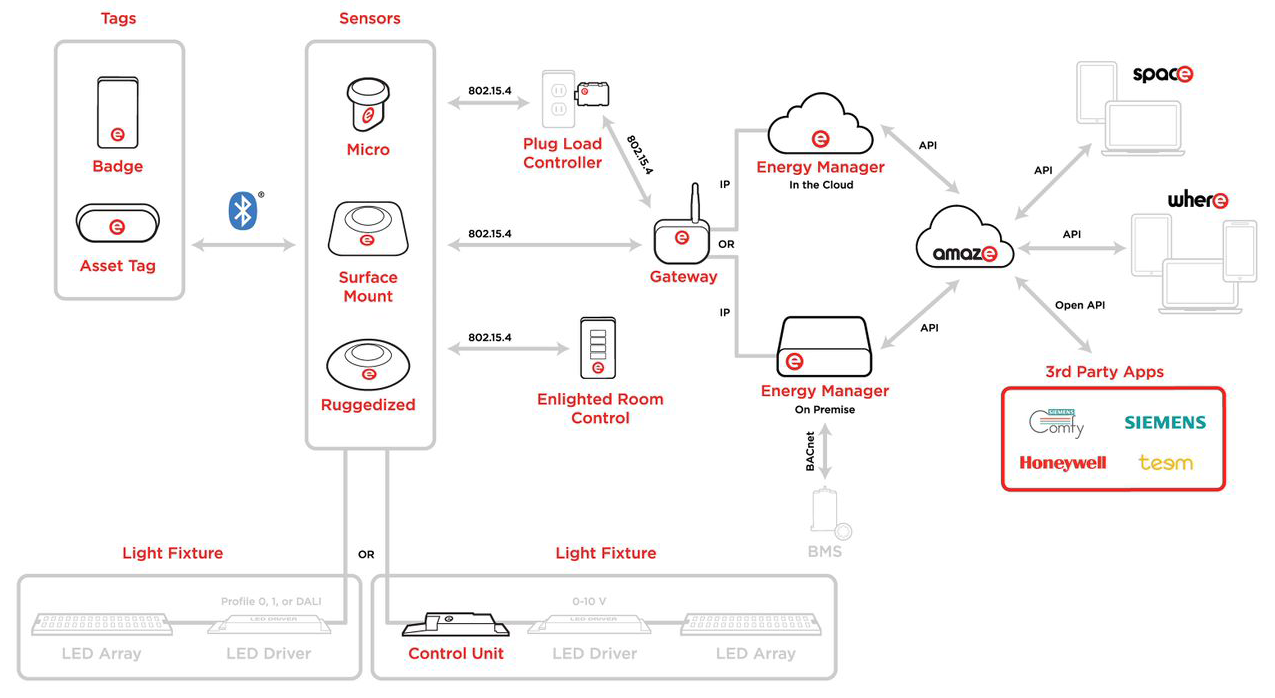

THE ENLIGHTED IOT PLATFORM SYSTEM ARCHITECTURE

Enlighted sensors are installed in each light fixture in a building, creating a dense and granular grid of coverage for data collection. The cloud-based data in Amaze is used by Enlighted’s IoT software applications Space and Where, and also available to 3rd party applications via APIs. Asset tags and badges communicate using Bluetooth with the sensors for calculating the location of assets and people.

Enlighted-IoT-Platform-Architecture-Diagram

COMPATIBLE PRODUCTS WITH ENLIGHTED

VERTICAL MARKETS

Improve Customer Satisfaction & Increases Revenue



  • Checkout Queue Analysis
    Know customer checkout times to optimize staffing and break times for rush and lull periods
  • Impactful Customer Service
    Identify customers wandering the store or staying in one location too long and send help
  • Shopper Traffic Flow Analysis
    Determine shopper traffic direction, density, and approach times to optimize placement and end-cap advertising

Determine shopper traffic direction, density, and approach times to optimize placement and end-cap advertising.

Read how one French retail giant, Schiever, is using the Enlighted System to become more sustainable.



Color Output and Savings



  • Reduced Energy Usage
    Use real-time occupancy to lower lighting in areas such as libraries, dorm rooms, classrooms, offices
  • Human-Centric Lighting
    Tune light color output and intensity to facilitate learning and attention
  • Security & EHS
    Prevent asset loss, visitor tracking, geofencing of controlled areas. Wayfinding and optimal evacuation routes

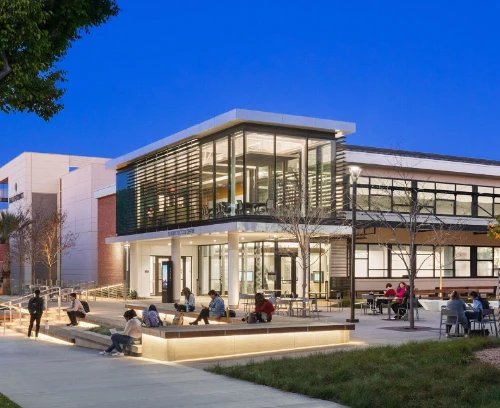

Read here how one Californian University campus is saving 446,932 kWh of energy annually, amounting to $56,772 in energy costs annually.

Process Improvement & Energy Savings



  • Optimize Productivity
    Analyze traffic density, pick/place congestion, and worker, forklift, dock travel routes, etc.
  • Improve Asset Utilization and Management
    Locate high-value assets, analyze use/non-use times, and set alerts for machine/zone boundaries
  • Lighting Control & Energy Savings
    Wireless lighting control and energy efficiency gains

Read here how one Warehouse distribution company cut lighting energy costs by 75%.



Improve Patient Care & Reduce Costs



  • Improved Staff Efficiency
    Find assets and coworkers quickly. Faster patient response times and lower facility queue times
  • Reduce Asset Loss
    Create real time location-based alerts for high value assets
  • Optimize Facility Space
    Understand how spaces such as offices, waiting areas, patient exam rooms, break areas are used and reconfigure for optimal use

Learn more on how one Healthcare facility is now saving $49,153 USD per year, resulting in a ROI in four years.



Improve Employee Well-being and Productivity,
and Reduce Energy Consumption

  • Reduced Energy Usage
    Use real-time occupancy to lower lighting in areas such as unoccupied meeting rooms, desk spaces and offices
  • Human-Centric Lighting
    Tune light color output and intensity to facilitate employee wellbeing and productivity
  • Optimize Office Space
    Understand how spaces such as offices, conference rooms, desks, and collaboration spaces are used and reconfigure for optimal use

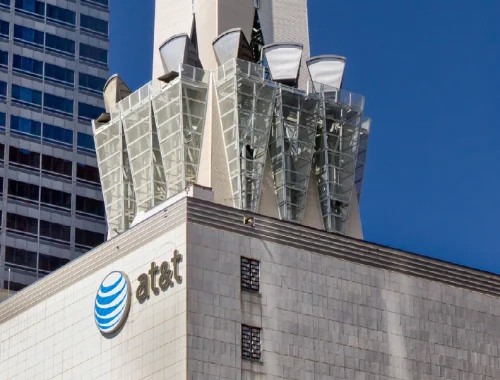

Read how Enlighted’s 20 million square foot retrofit project is saving Telecommunications company, AT&T, around $8 million a year in lighting energy expense.

ENLIGHTED ONE

LIGHTING IS ONLY THE BEGINNING

SENSOR SPECIFICATIONS

Micro SensorMicro Sensor Spec Sheet



The Enlighted Micro Sensor, 8-pin, is our fifth-generation sensor, delivering all the functionality of our other sensors in a minimally-sized package. Integrated sensors capture data that is both processed locally and transmitted over the Enlighted network, enabling a full suite of applications. In addition, the sensor supports Bluetooth® Low Energy communication with tags and other BLE devices.



The Micro Sensor, 8-pin, is a complete sensing and lighting control node powered from its attached light fixture. An innovative carrier-based mounting design supports easy installation and replacement. With integrated wireless communications for data transmission and remote configuration as well as autonomous fixture-level control, this sensor brings advanced lighting automation to a whole new level.

Enlighted motion chart
Enlighted-Micro-Chart
EnlightedSensor
  Micro Sensor, 8-pin
Body L 0.88″ 22.5 mm
Dia. 0.73″ 18.5 mm
Bezel Dia. 1.06″ 27.0 mm
  The Enlighted Fixture Carrier
Body L 0.51″ 13 mm
Dia. 0.81″ 20.7 mm
Enlighted-mircosensor
line
Ruggedized SensorRuggedized Sensor Spec Sheet



MOUNTING
The Ruggedized Sensor install into a standard 1/2″ fixture knockout. A permanently attached 22″ cable with an RJ-45 connector must be fed through the opening before the sensor is secured via a threaded locknut provided with the sensor.



SENSOR COVERAGE PATTERNS
The Enlighted Ruggedized Sensor incorporates an optical Fresnel lens that works with the digital Passive Infrared (PIR) sensor to detect occupancy and motion. The multifaceted lens focuses light onto the PIR to produce an all-encompassing field of view through aggregation of many narrow fields of view. Two lens options are offered to cover standard (<18 ft.) and high-bay (up to 50 ft.) ceilings. When the Ruggedized Sensor is deployed as recommended, the area covered by each sensor overlaps, reinforcing coverage and accuracy across the entire floor plan.

Ruggedized Sensor Motion Chart
RuggedizedSensorTop-Side-View
RuggedizedSensor
  Ruggedized Sensor, 8-pin
Dia. 3.54″ 90.0 mm
H 1.16″ 29.5 mm
RuggedizedSensorDimensions
line
Surface Mount SensorSurface Mount Spec Sheet



MOUNTING
The Surface Mount Sensor comes with a nylon threaded screw for mounting in acoustical tile or drywall ceilings. Pendant button mount and flat metal bracket mount options are available.



SENSOR COVERAGE PATTERNS
The Enlighted Surface Mount Sensor incorporates an optical Fresnel lens that works with the digital Passive Infrared (PIR) sensor to detect occupancy and motion. The multifaceted lens focuses light onto the PIR to produce an all-encompassing field of view through aggregation of many narrow fields of view. When the Surface Mount Sensor is deployed as recommended, the area covered by each sensor overlaps, reinforcing coverage and accuracy across the entire floor plan.

Surface Mount Sensor Motion Chart
SurfaceMountSensor-TopSide
SurfaceMountSensor

  Surface Mount Sensor
L 3.46″ 88.0 mm
W 3.46″ 88.0 mm
H 1.18″ 30.0 mm
SurfaceMountSensor-dimension
