SLEEK, SLENDER & THE MOST VERSATILE STRIP LUMINAIRE ON THE MARKET TODAY

QWIKLINK’s standard field selectable Lumen and CCT features provide complete flexibility at your fingertips. Utilize its toolless QWIKLINK connector for uninterrupted, continuous row illumination up to 64 linear feet with only one electrical power entry. These features drastically reduce installation time and increase project efficiencies. With these adaptable and robust features, QWIKLINK is the optimal choice for any interior linear environment.

LUMENS

1,200 – 5,200

HIGH EFFICACY

Up to 130 lm/W

CCT

3000K – 4000K

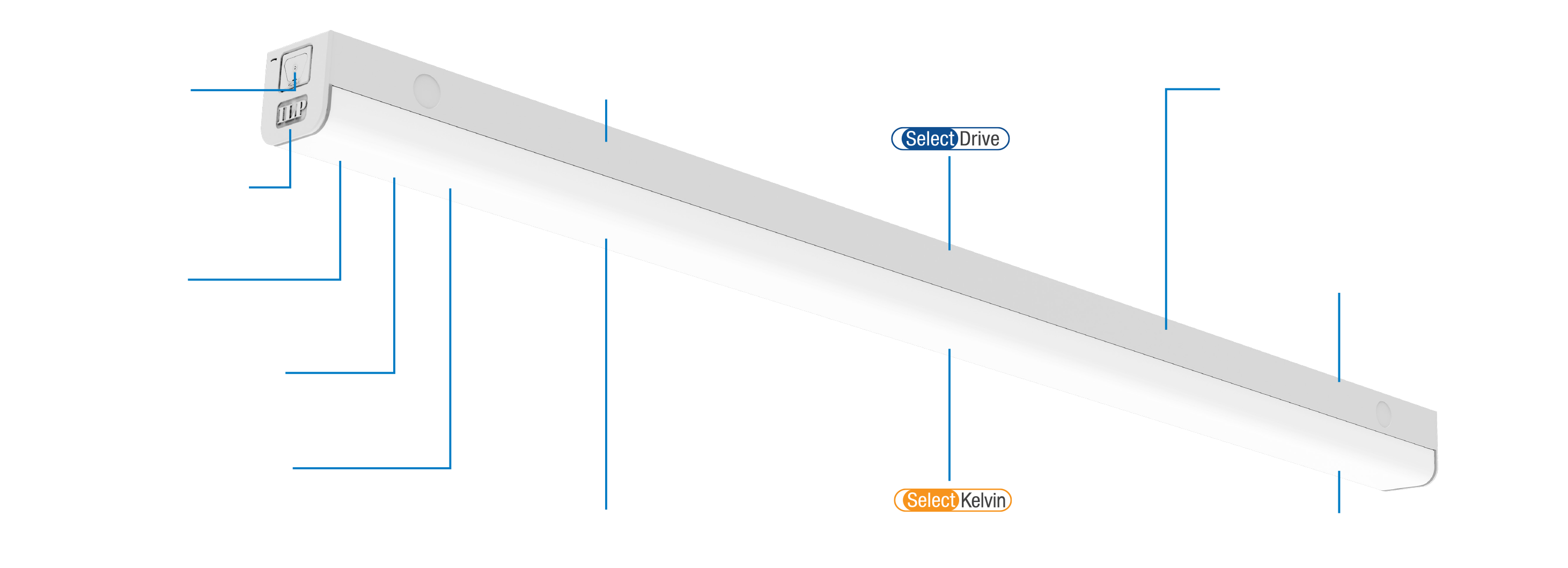

FEATURES

Features

SUITABLE APPLICATIONS

  • Education
  • Healthcare
  • Commercial Office
  • Grocery Store
  • Storage Facility
  • Retail
  • Industrial
  • Residential
  • Stairwell and Passageway

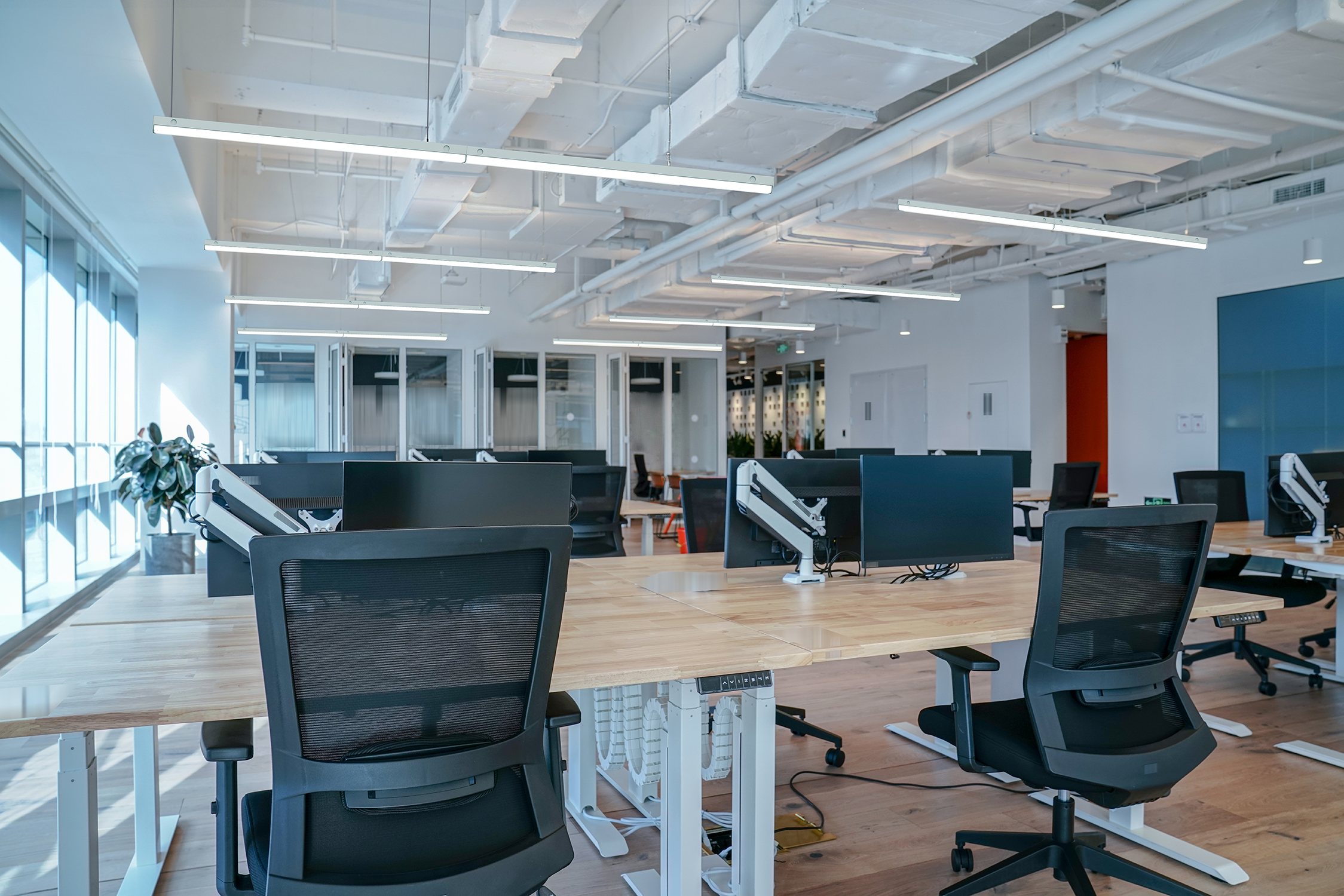

QL-brochure-inside-image

AVAILABLE OPTIONS

QWIKLINK CABLE

Available in 7.9″ (QL20) & 60″ (QL150) lengths allow for angled, corner & distant fixture connections.

200mm-cable-with-fixtures
Cable
QWIKLINK CONNECTOR

Allows for toolless and seamless connection up to 64 linear feet per electrical power entry. QWIKLINK connection provides 0-10V dimming connection between fixtures. One QWIKLINK connector included with every fixture.

Connector
3Connected
QWIKLINK SENSOR

Remote programmed field installed QWIKLINK sensor integrates with single or multiple fixtures for occupancy and photocell controls. Utilizing the included QWIKLINK connector allows the sensor to be installed within seconds with no additional wiring required in the field. The sensor mounts on the end of the fixture and can be placed in any location along a 64ft run to provide optimal motion sensing and energy savings.

QLSensor
Sensor
